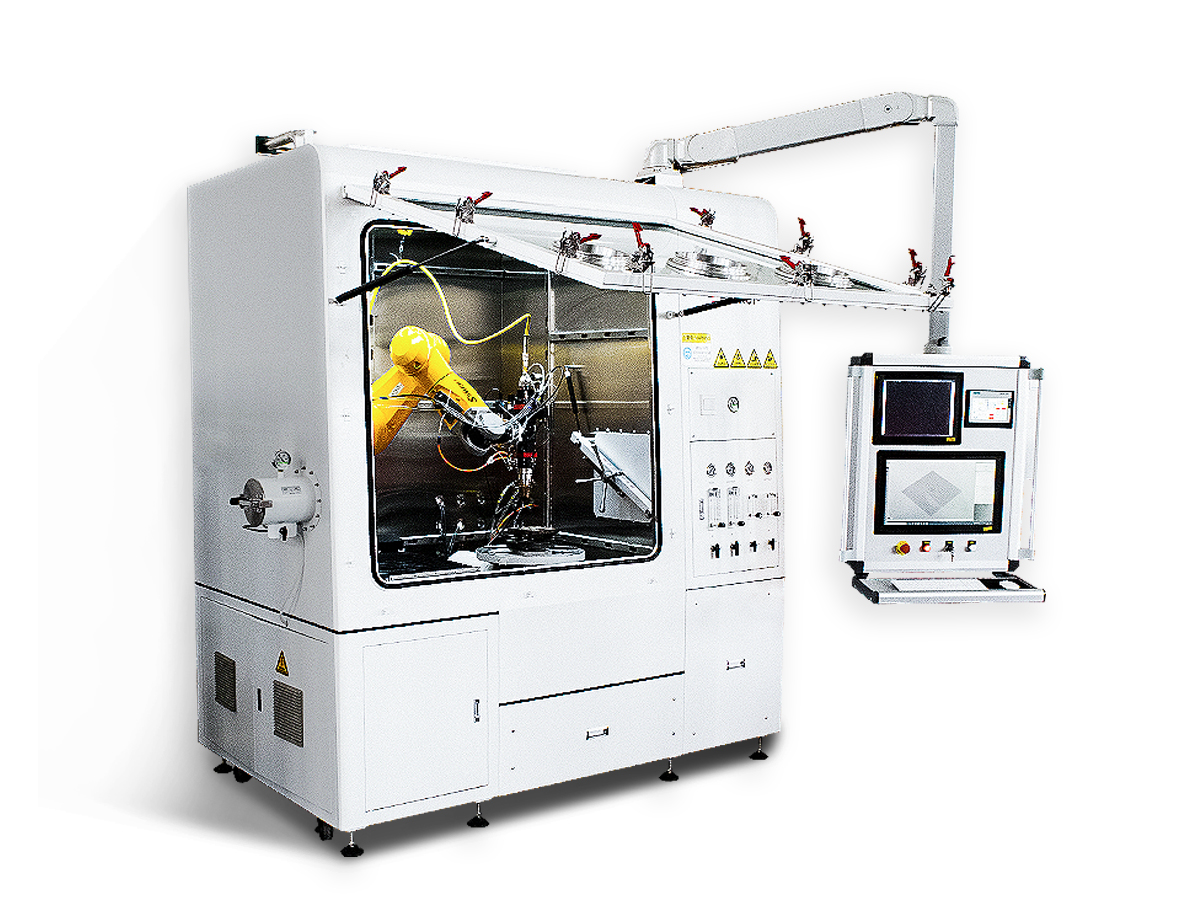

What is High-throughput Metal 3D Printing DED?

Atmosphere protected 3-axis laser addtive system can realize the preparation and printing of  continuously changing metal composition materials.It is mainly used in 3D printing, additive repair, cladding strengthening, material design research, etc.

For more videos about fiber laser cladding machines,

just click the button.

Atmosphere protection:

Inert gas closed working environment, water oxygen can be reduced to within 1ppm.

Control system:

Adopts three-axis linkage control.

High motion accuracy:

Positioning accuracy 0.05mm

High level of integration:

The laser can reach up to 6 kw, and the main components are all independently developed by HUIRUI.

Easy system operation:

Hardware and software systems have good openness and operability.

Diversified application:

It can carry out various processing techniques such as laser cladding and laser printing, realising multi-purpose use of one machine.

Fiber optic/Semiconductor

500×400×300mm

Three-axis stroke

Laser

Powder feeder

≤6kw

Optional 4/5/6 tubes

Laser power

Cladding nozzle

Coaxial ring nozzle

2374*1815*2530mm

Overall size

Ambient water oxygen content

Down to 1ppm

3-axis linkage control

Control system

Laser head

Positioning accuracy

Straight fibre laser head

≤0.05mm

Moulding dimension

300×300×300mm

Dual-temperature, dual-control

Laser water cooler

≤1200kg

0.4-6mm

Spot diameter

Weight

50A±10%

Substrate heat

Amps

Heating temperature≥300℃

Configuration software

Process online monitoring software, slicing software, electrical control systems

Applied to industrial products in high value-added metal parts net shape repair and remanufacturing, such as aerospace parts blade tip extension, magazine, guides, landing gear, oil drilling tools, moulds and other

 products to repair and surface enhancement; can also be used for metal direct molding

(3D printing) manufacturing of new products.
