On this page you can find various models of laser cladding head, in addition, we can also customize the laser cladding head according to your process needs to meet your needs. Please send us a price inquiry for the parts and our sales manager will get back to you as soon as possible.

—————

Laser-grade optical modular design

Shockproof sealing design

Laser energy pass rate

≥ 99.5%

Coaxial vision imaging can be configured

Real-time imaging and closed-loop feedback control

—— HUIRUI ——

info@huirui-tech.com

+86-25-8675 6108

LH-ZSR-1020 LH-ZVR-1020

LH-WSR-1020 LH-WVR-1020

...............................................................................................................................................................................................................................................................................................

Circular spot output size

Collimation distance

Applicable wavelength

Focusing distance

Maximum power

...............................................................................................................................................................................................................................................................................................

0.5-5.0mm

8kW

200mm/300mm/400mm

900-1100nm

100mm/150mm

...............................................................................................................................................................................................................................................................................................

D52ZL

D5WL

D52WL

...............................................................................................................................................................................................................................................................................................

Model No.

D52ZL

D52WL

D5WL

...............................................................................................................................................................................................................................................................................................

Applicable wavelength

900-1100nm

...............................................................................................................................................................................................................................................................................................

Power

≤8kW

≤12kW

≤8kW

...............................................................................................................................................................................................................................................................................................

100mm/150mm

Collimation distance

...............................................................................................................................................................................................................................................................................................

300mm/400mm

Focusing distance

...............................................................................................................................................................................................................................................................................................

Rectangular spot size

10X2mm/16X2.5mm/

20X2mm

10X2mm/16X2.5mm/

20X2mm

20X2/30X2mm

...............................................................................................................................................................................................................................................................................................

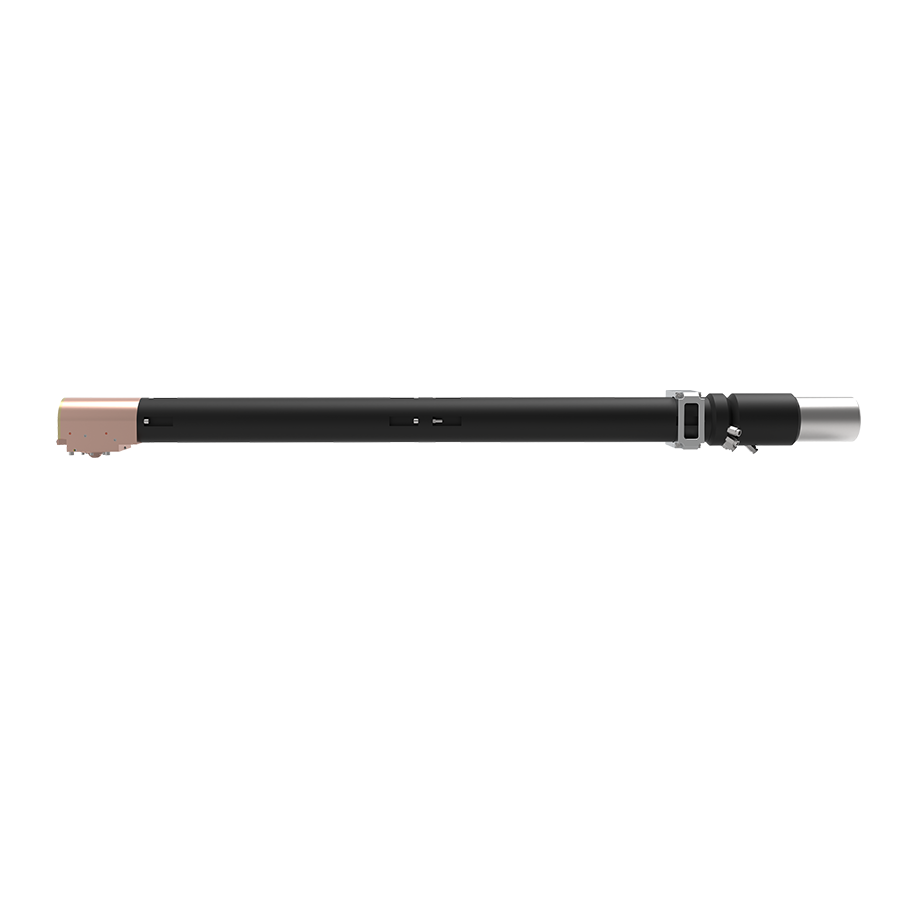

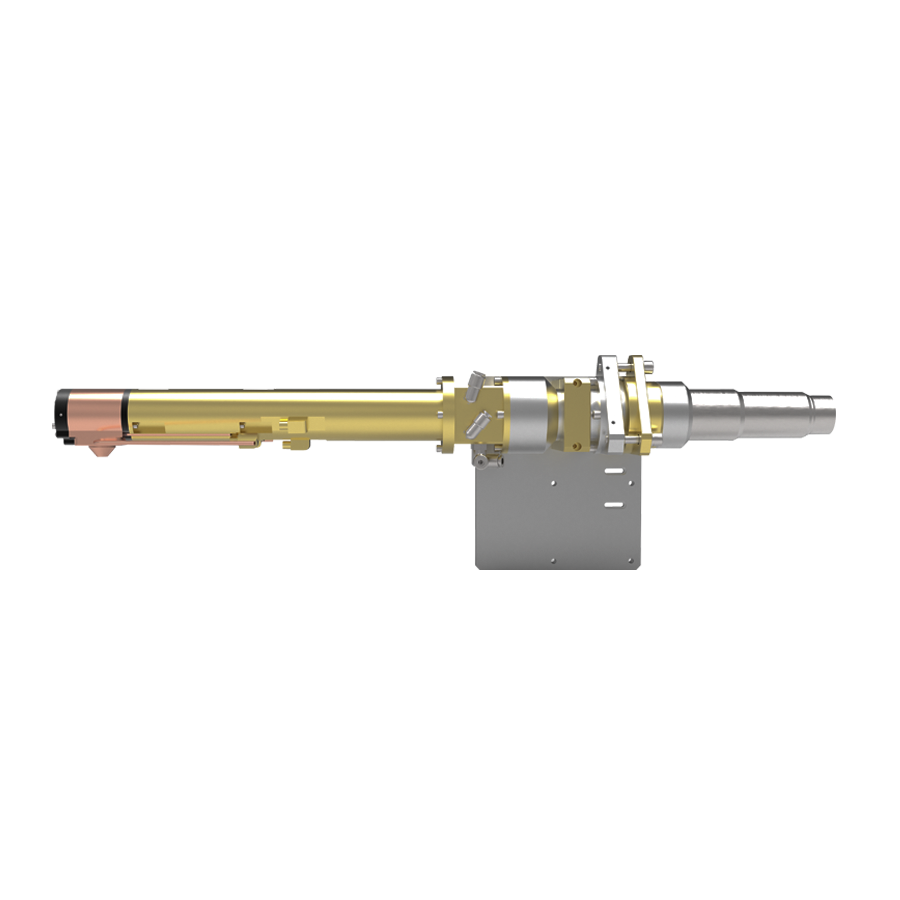

D180

D100

D80

...............................................................................................................................................................................................................................................................................................

Model No.

D180

D100

D80

...............................................................................................................................................................................................................................................................................................

Beam spot

2-3mm

...............................................................................................................................................................................................................................................................................................

Depth

≤300mm

...............................................................................................................................................................................................................................................................................................

≥80mm

≥180mm

≥100mm
