What is Mobile Laser Cladding And Grinding System?

To reduce the MRO response time for customer needs, the components required for laser cladding are integrated into modules, with a special transport vehicle. The equipment can be quickly delivered to the repair site, it can be quickly assembled for the cladding operation. Saving customers time and costs while improving integity of repaired parts.

Mobile Laser Cladding And Grinding System

For more videos about fiber laser cladding machines,

just click the button.

multifunctional:

Can be used not only for laser cladding, but also for automated robotic grinding and polishing of clad parts.

High processing efficiency: Deposition efficiency≧50mm³/s，Laser power 4-6kW.

Better integration smaller overall size, easier transportation.

Suitable for a wide range of conditions:Large equipment repair sites, workpieces that cannot be disassembled and transported, etc.

Working range

Fiber optic/Semiconductor

Laser

2000mm

100kg

Laser power

Maximum table load

4-6kW

Power instability

1-400g/min

≤±2%

Powder feeding capacity

Operating mode

≥50mm³/s

Continuous/debugging

Deposition efficiency

Repeat positioning accuracy

±0.03mm

Remote Communications

Profinet

Motion actuators

6-axis industrial robot

CAAM

Software

Inductive heating, infrared thermometry, coaxial imaging, coaxial illumination, closed-loop feedback control

Other applied technologies

1、more beautiful appearance, all integrated, smaller size, easy to transport;

2、In almost no external wiring design, greatly reducing the failure rate;

3、With linear laser nozzle, the melting efficiency is higher.

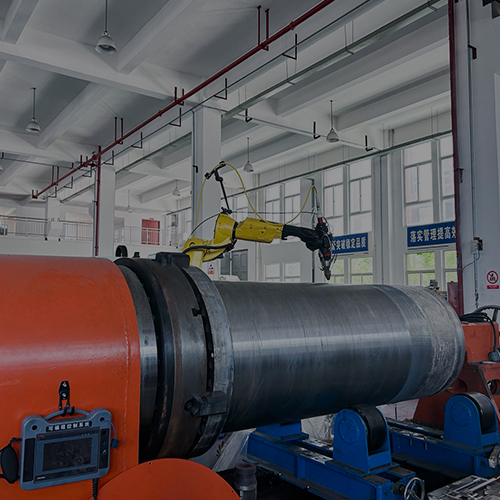

Can be used for rapid repair of major complete sets of equipment in large enterprises, as well as in the energy and power industry, petrochemical industry, moulds, cutting tools and other industries.
