Laser DED Components

Cladding nozzles



Huirui has developed a variety of laser cladding nozzles. The nozzles are interchangeable and can be fitted with Huirui’s laser heads by the same

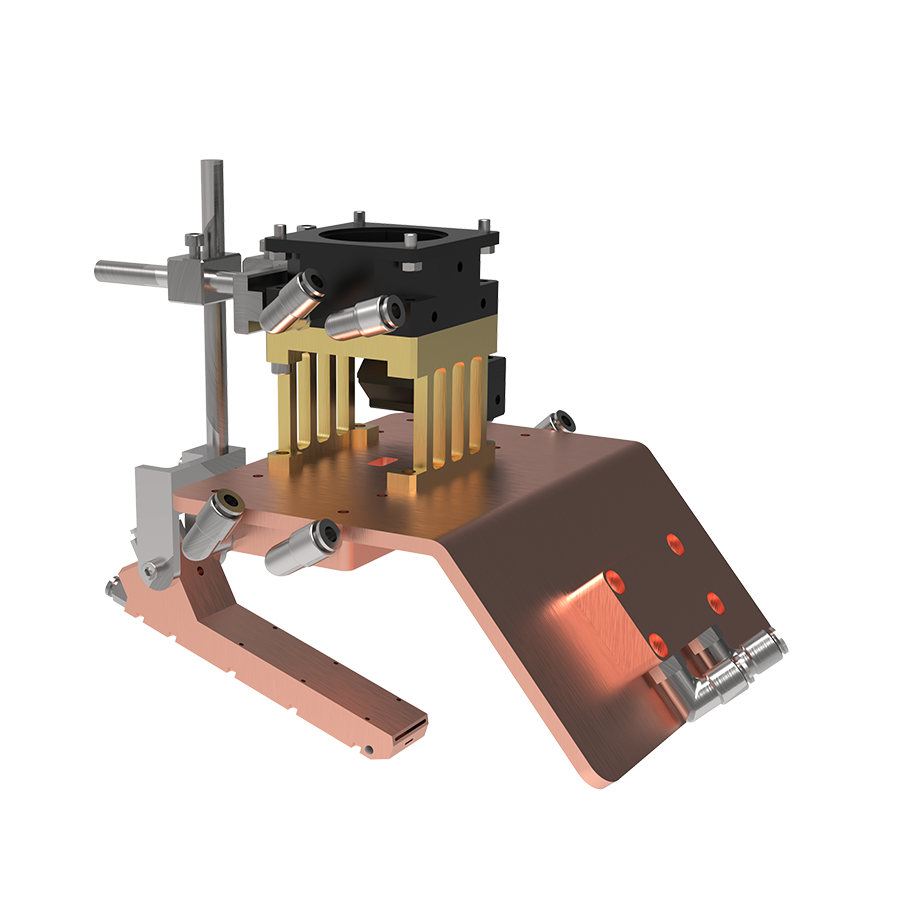

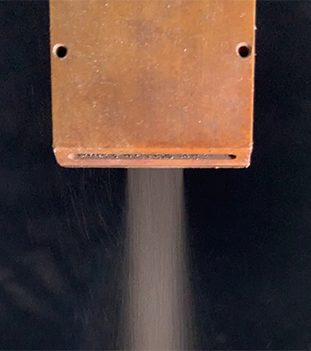

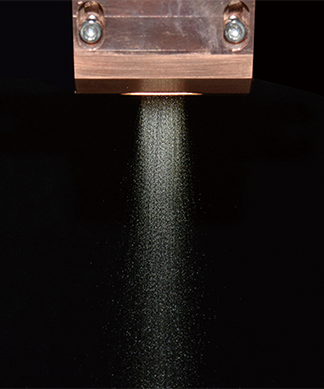

nozzle interface module. The linear nozzles can be used in combination with the shaping module to produce a linear-shaped spot, which meets the need for efficient and long-lasting cladding at higher power (≥4kw).

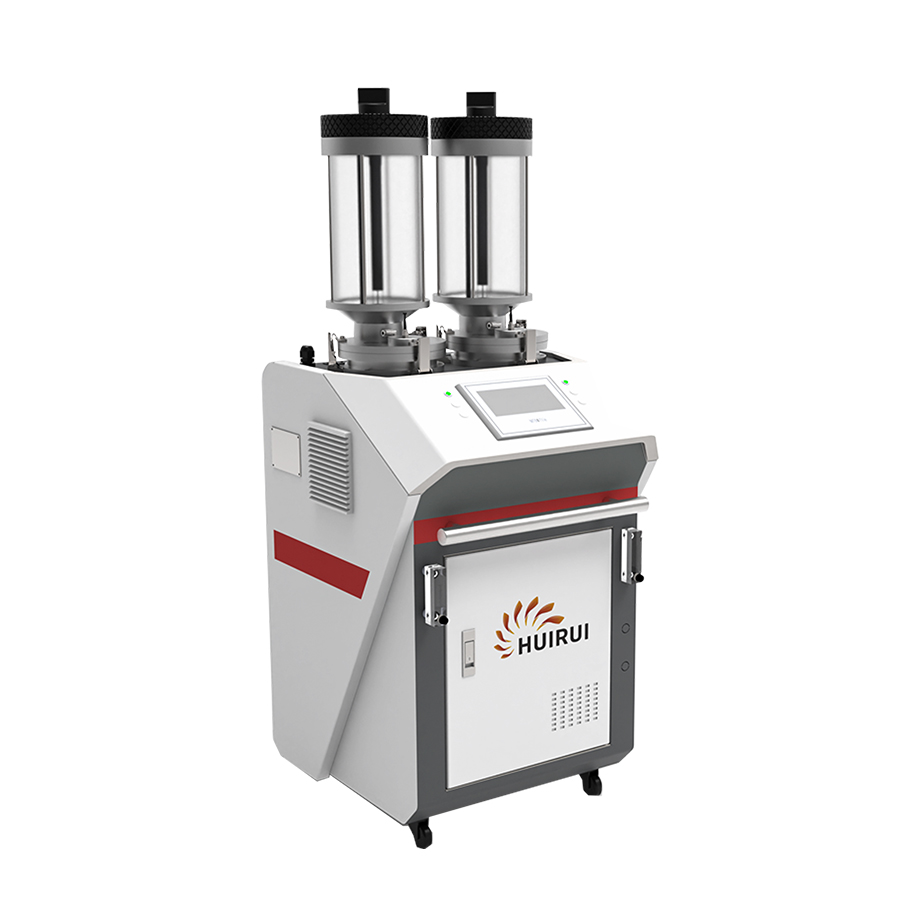

Powder feeder
Cladding nozzle

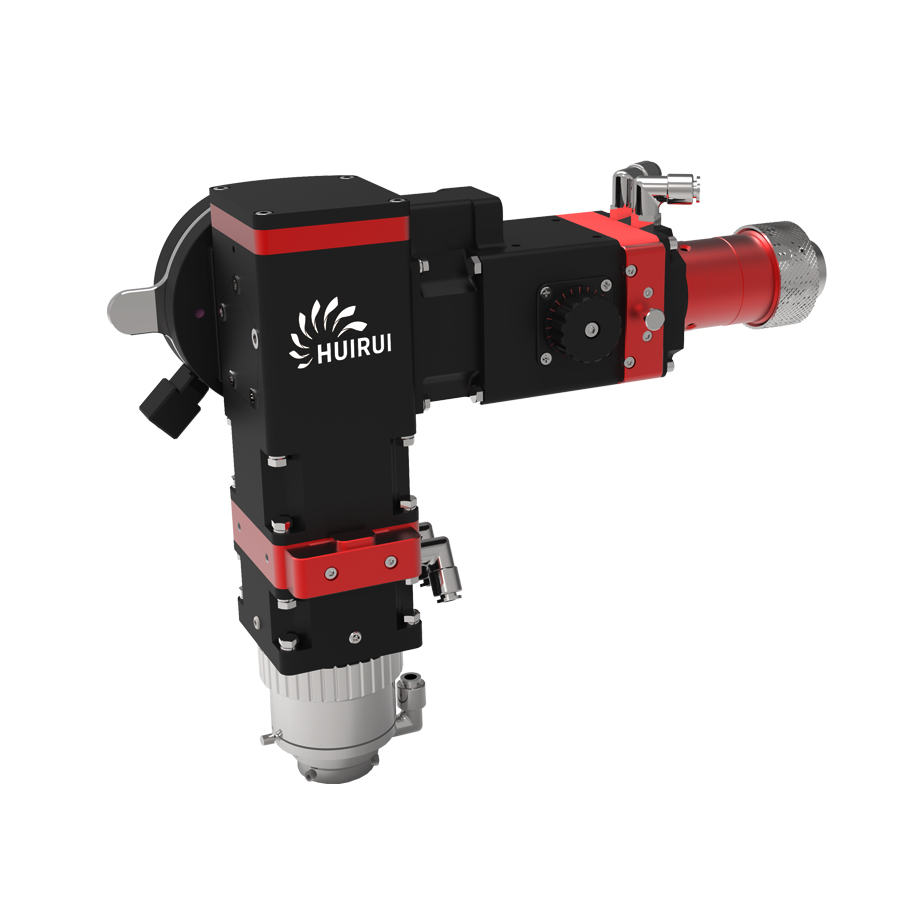

Laser head
In this page you can find various models of laser cladding nozzles, divided by, we can also customize laser cladding nozzles according to your process needs to meet your needs. Please send us a price inquiry for the parts and our sales manager will get back to you as soon as possible.
—————
—————
—————
—————
—————

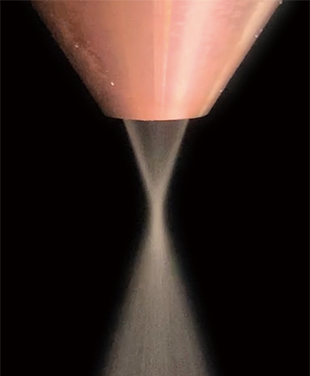

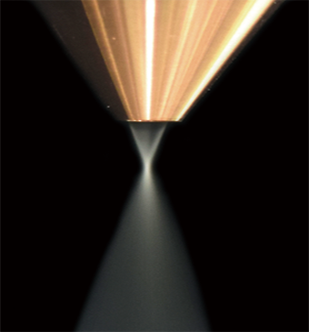

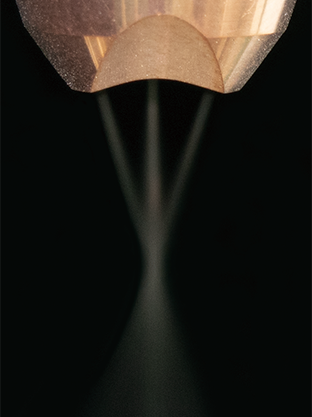

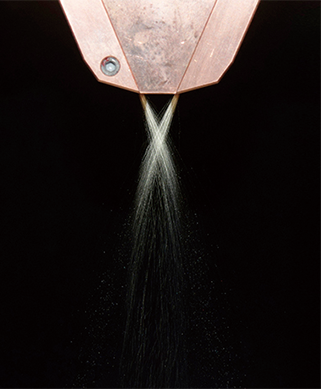

stable powder

feeding process

More suitable for large powder feeding

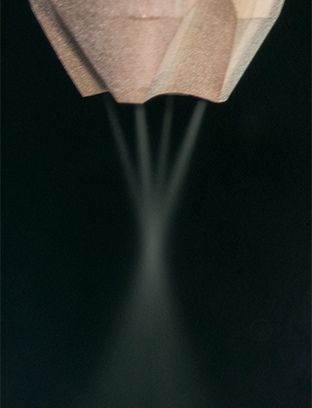

Uniform cladding

High powder utilisation

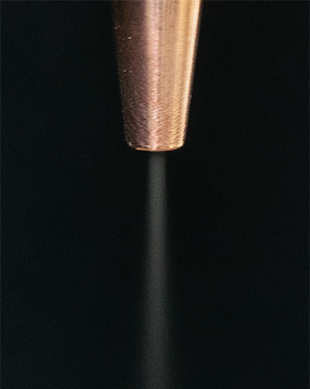

Good focusing

 Detailed powder output

Adaptive deposition thickness control function

  • Title
  • Name*
  • E-mail*
  • Company Name*
  • Country*
  • Tel*
  • Message*
Submit
—— HUIRUI ——
info@huirui-tech.com
+86-25-8675 6108

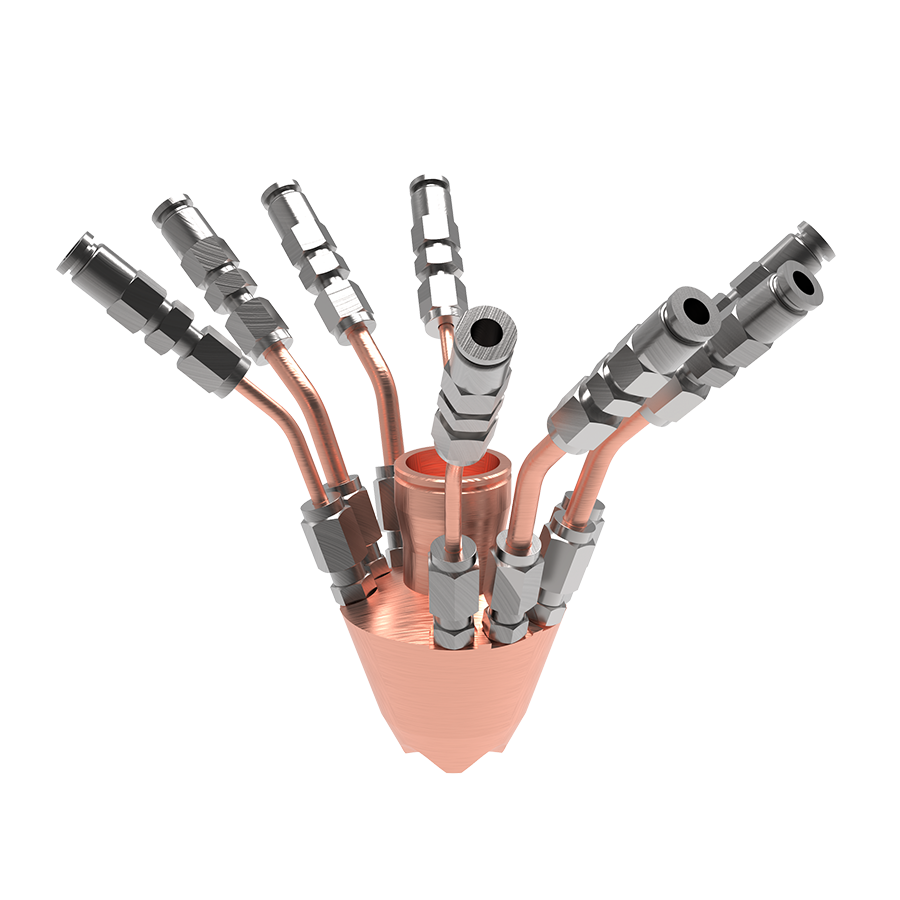

CF-1330-01

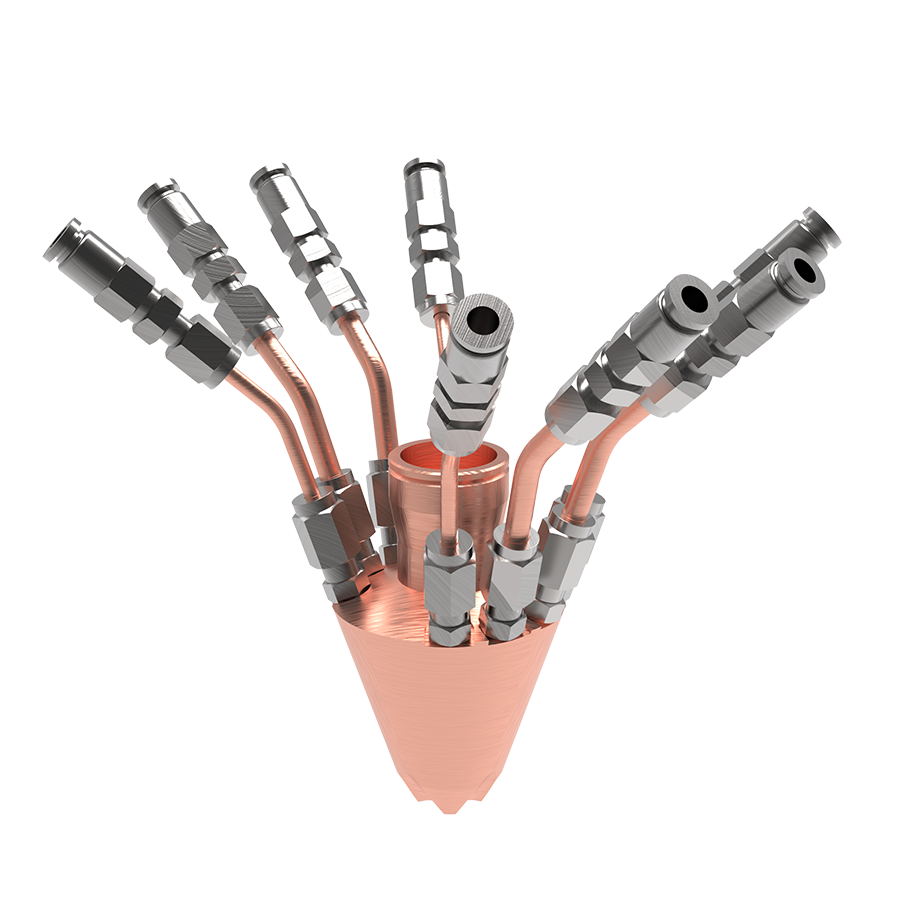

CF-1317-01

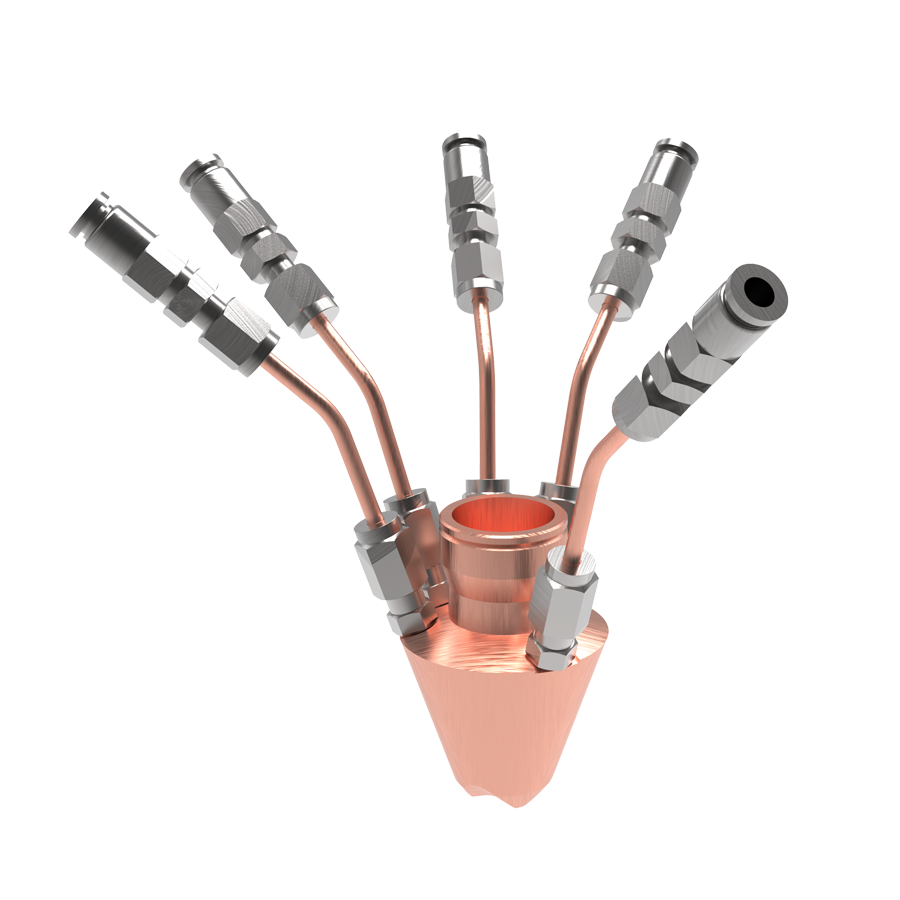

CT-1317-01

...............................................................................................................................................................................................................................................................................................

Model No.

CT-1317-01

CF-1330-01

CF-1317-01

...............................................................................................................................................................................................................................................................................................

Laser power

≤6kW

≤6kW

≤4kW

...............................................................................................................................................................................................................................................................................................

Working distance

16-18mm

30-32mm

16-18mm

...............................................................................................................................................................................................................................................................................................

2.5-4mm

2-3.5mm

3.5-5.5mm

Powder spot size

...............................................................................................................................................................................................................................................................................................

φ7.5mm

φ7.5mm

 φ6.5mm

Aperture

...............................................................................................................................................................................................................................................................................................
...............................................................................................................................................................................................................................................................................................

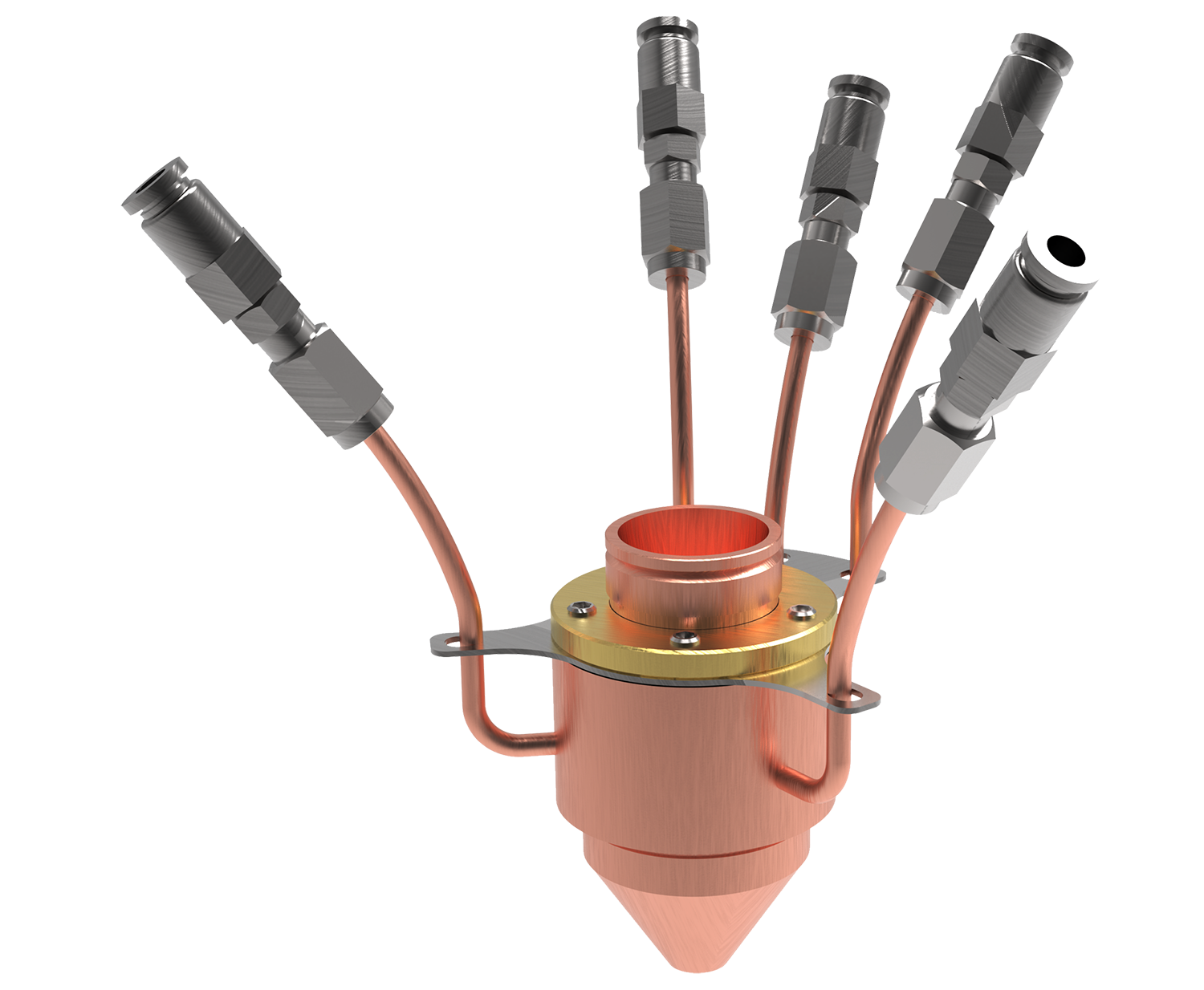

CC-0406-01
CC-0408-01

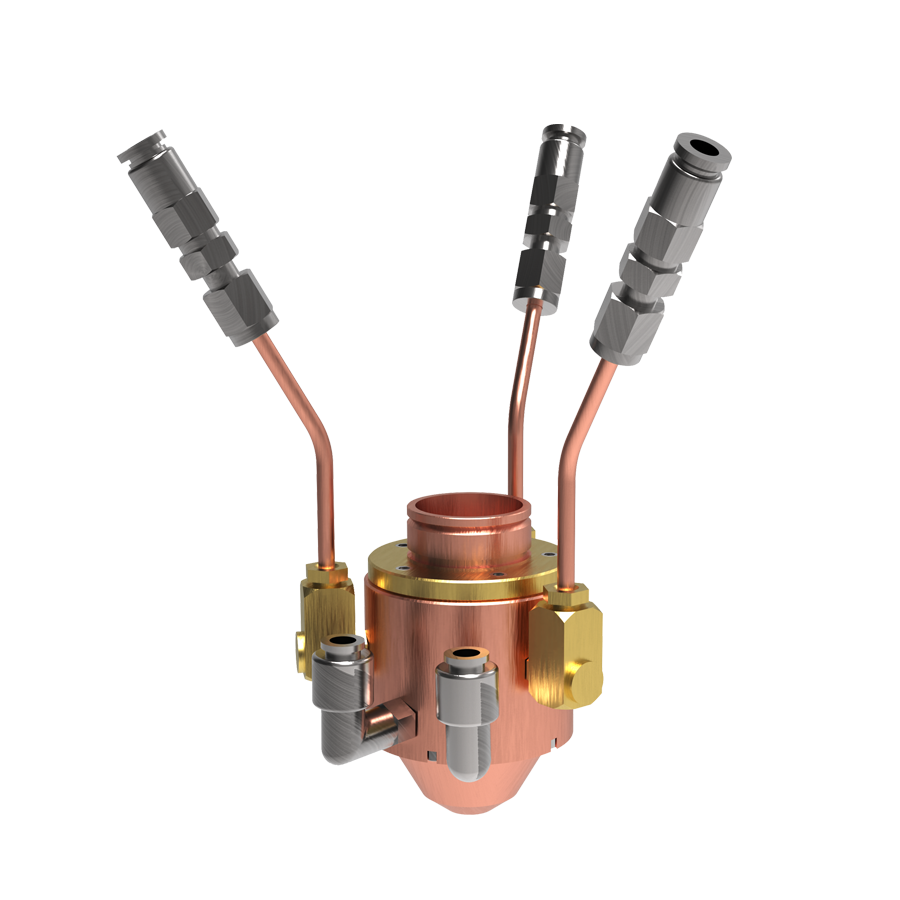

CC-0715-01

CC-0610-01

...............................................................................................................................................................................................................................................................................................

Model No.

CC-0610-01

CC-0406-01

CC-0715-01

CC-0406-01

...............................................................................................................................................................................................................................................................................................

Laser power

≤6kW

≤3kW

≤3kW

 ≤5kW

...............................................................................................................................................................................................................................................................................................

9-13mm

Working distance

6-7mm

15-17mm

7-9mm

...............................................................................................................................................................................................................................................................................................

 0.6-1mm

2-3.5mm

0.8-1.5mm

 0.8-1.5mm

Powder spot size

...............................................................................................................................................................................................................................................................................................

φ4.3mm

 φ6mm

 φ7mm

 φ4.2mm

Aperture

...............................................................................................................................................................................................................................................................................................
...............................................................................................................................................................................................................................................................................................
CC-1012(10-15)-01

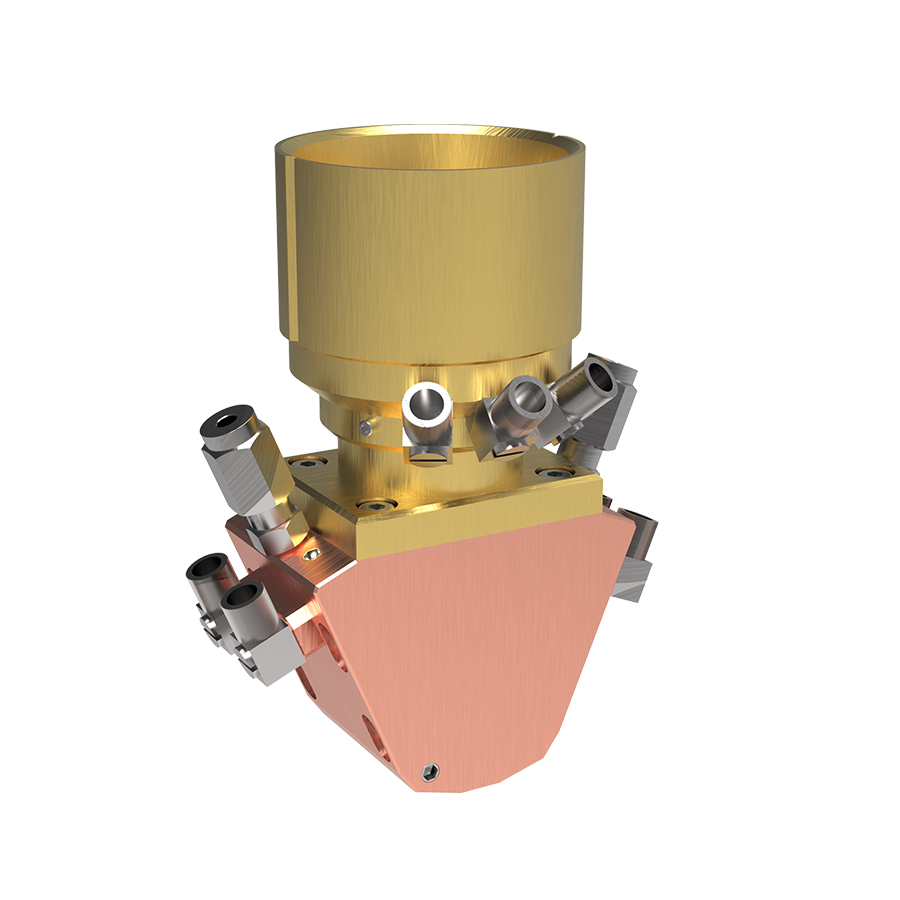

SL Series

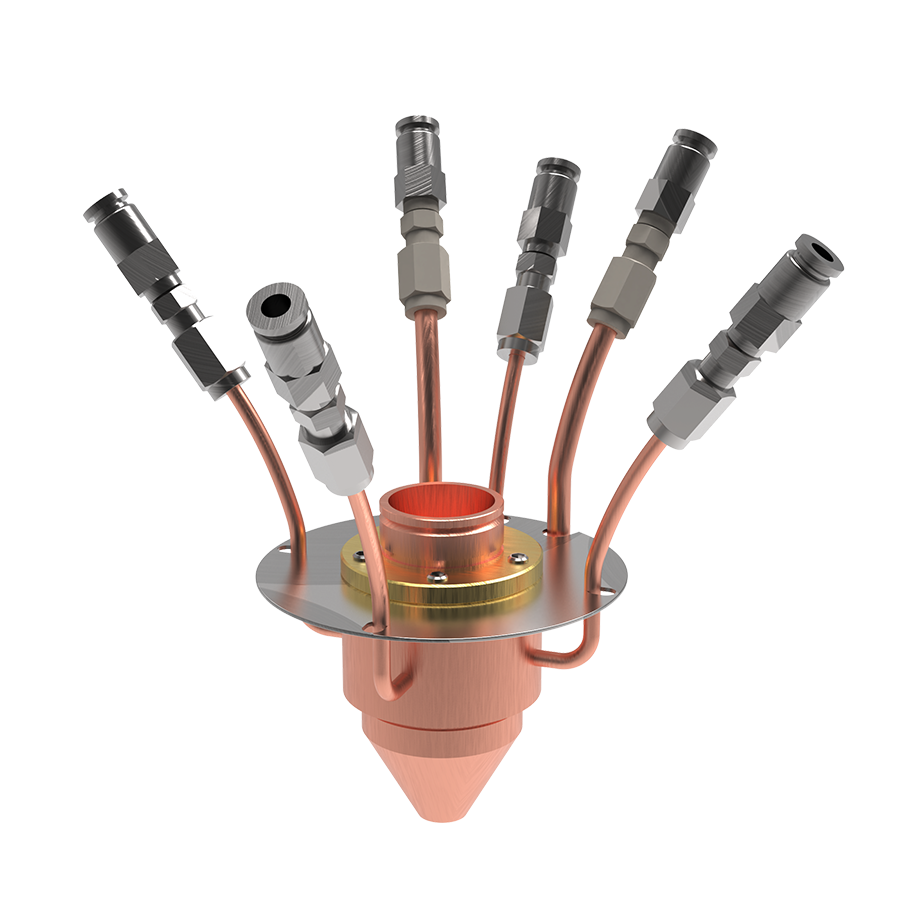

CC-7520-02

 SO Series
...............................................................................................................................................................................................................................................................................................

Model No.

SO Series

CC-7520-02

CC-1012(10-15)-01

SL Series

...............................................................................................................................................................................................................................................................................................

Linear Powder Flow Length

⚫

⚫

6-24mm

⚫

...............................................................................................................................................................................................................................................................................................

2-4mm

⚫

⚫

Linear powder flow width

⚫

...............................................................................................................................................................................................................................................................................................

 10-15mm

 12.2mm

19-23mm

 10-15mm

Working distance

...............................................................................................................................................................................................................................................................................................

1.5-2mm

⚫

⚫

Minimum powder feeding diameter

⚫

...............................................................................................................................................................................................................................................................................................

Powder particle size

50-200um

50-200um

53-150um

50-200um

...............................................................................................................................................................................................................................................................................................

Recommended matching laser power

 ≤6kW

 3-10kW

3-10kW

≤8kw

...............................................................................................................................................................................................................................................................................................
...............................................................................................................................................................................................................................................................................................
