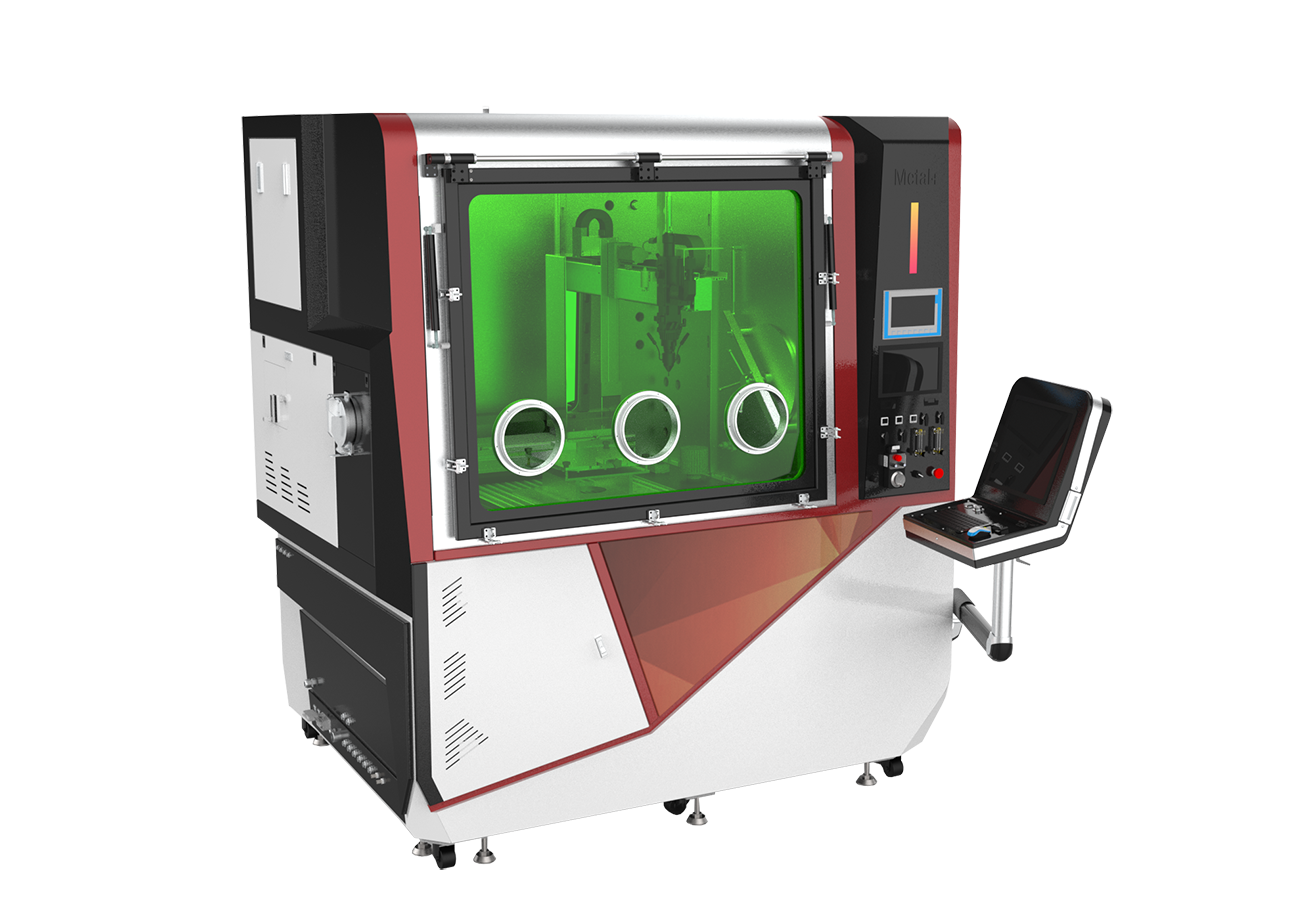

What is Ultra-high-speed Laser Cladding System?

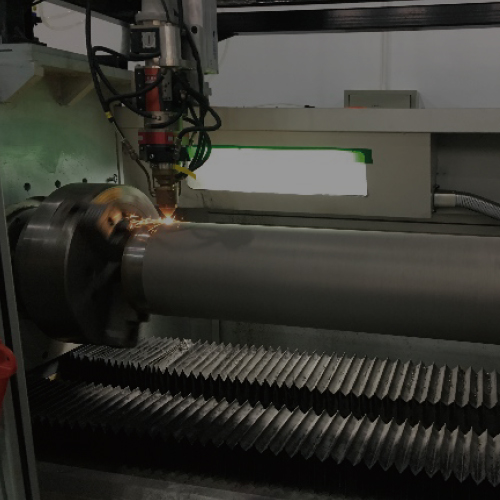

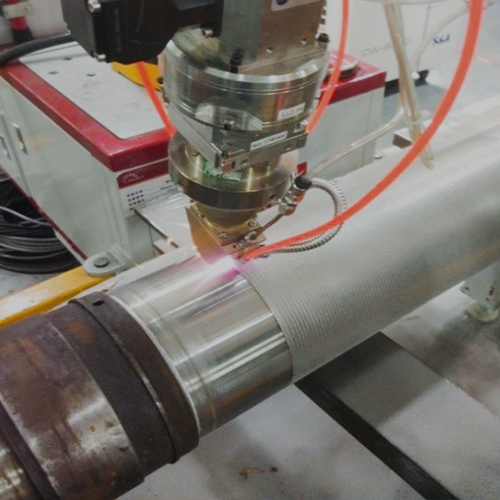

Ultra-high-speed laser cladding system independently developed by HUIRUI is a kind of composite equipment integrating turning, cladding and mirror processing. It enables the sequential completion of additive/deductive machining and mirror machining of shaft parts after one clamping and positioning, avoiding the problem of round runout error brought by multiple clamping, and greatly improving the quality of coating and production efficiency. The overall integration of the equipment is higher, more beautiful appearance, higher operability and reliability.
For more videos about fiber laser cladding
machines, just click the button.
Hydraulic tailstock:
Programmable adaptive hydraulic tailstock with proper hydraulic pressure adjustment to adjust the ejector force of the tailstock ejector pin.
High processing efficiency: Deposition efficiency up to 500cm²/min.
Stabilised coating process: Dilution <1%, layer thicknesses of 50-500 μm possible.
Multi-speed auto tuning:
1.single-speed ordinary spindle speed: 5-150 rpm;
2.single-speed low-speed spindle speed: 0.5-30 rpm;
3.auto-shift multi-gear spindle speed: 0.5-150 rpm.
Laser
Fiber/Diode laser source Laser
50-1500 μm
Layer thickness
Laser power
Weight capacity
3t
≤12kW
3m
Motion mechanism
Processing length
3+1Axis
Spindle speed
1-150/1-200rpm
≤500cm²/min
Deposition Efficiency
400/600mm
Maximum rotation diameter
<1%
Substrate dilution rate
±0.05mm
Repeat position accuracy

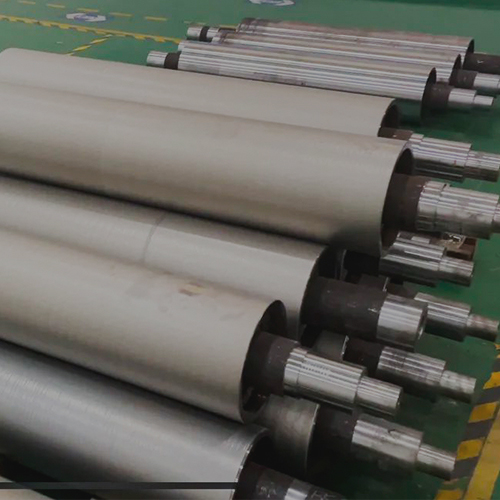

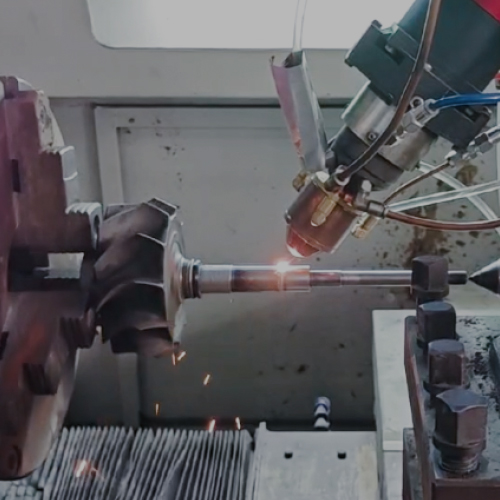

This equipment is suitable for all kinds of shafts and rolls, and can be used in metallurgical industry, coal mining machinery,construction machinery and other industries.
