What is Metal+One® ?

3D printing high-throughput material equipment that is compact in size, refined and accurate powder feed, especially for use in material design research and laboratory environments.

For more videos about fiber laser cladding

machines, just click the button.

Batch print:Development of special high-throughput test software system and interface, one-time batch printing of material samples with different composition ratios.

Equipped with multi-way powder feeder: Configuration of the multi-way powder feeder can achieve a variety of powder real-time mixing, mixing ratio can be accurately controlled.

Environmental tank water oxygen indicator ≤ 10ppm,It is suitable for compositional screening and property studies of a wide range of materials as well as gradient materials.

300×300×200mm

CCD Coaxial Camera

Melt Pool Morphology Inspection

Range of work

Optional 4/5/6 tubes

Powder feeder

±0.006mm

Repeat displacement accuracy

AC380V±10%/3P+N+PE

Operating voltage

Environmental tank water oxygen indicator

≤10ppm

Range of printed materials

Steel materials, aluminium alloys, titanium alloys, nickel-based high-temperature alloys, high-entropy alloys, ceramic powder materials, etc.

Equipment using special control software, in accordance with the experimental preset proportion of different multi-component powder composition and print the number of print trajectory and different blocks of powder barrel feeding rate. Environment box water oxygen indicators reduced to less than 10ppm after the start of printing, different rates of powder feeding powder into the mixer for real-time mixing, inert protective gas delivery into the coaxial nozzle and jet, high-power laser will melt the powder and in the three-axis mechanism under the drive according to the preset trajectory of the movement, print out the proportion of different components of the test sample block.

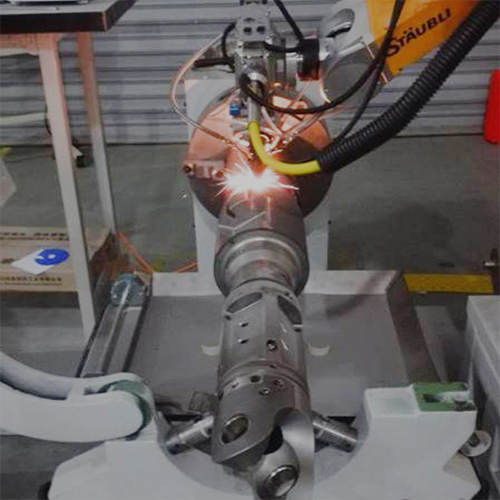

Examples include aero-engine and gas turbine components, vavles, oil drilling tools and moulds.  The product range has been applied to additive repair and 3D printing of metal materials such as nickel-based superalloys, titanium alloys, aluminium alloys, cobalt-based alloys and high-strength steels.
