What is Inner Diameter Laser Cladding System?

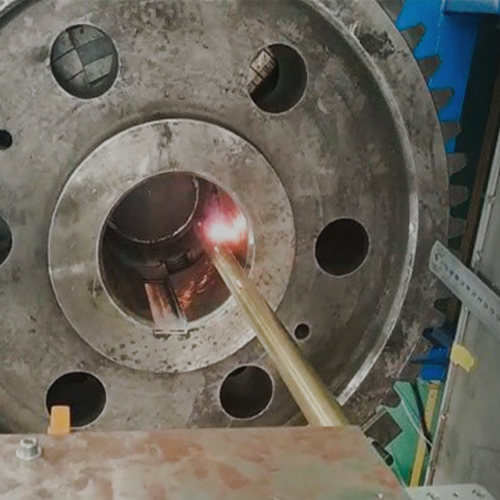

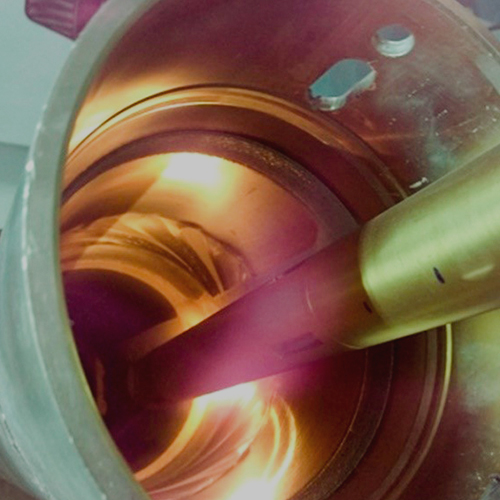

With the advantages of high integration, high precision and high adaptability, Inner Diameter Laser Cladding Additive Repair System can conveniently realise high-efficiency and high-quality laser processing of the internal surfaces of different types of parts, and has the accessibility that is difficult to be obtained by the traditional optical head, which, together with HUIRUI's existing ultra-high-speed laser cladding technology, can complete the high-speed cladding processing of the oil cylinders, pillars and other products.

Inner Diameter Laser Cladding System

For more videos about fiber laser cladding

machines, just click the button.

Shallow melt depth, low dilution of the cladding layer, good anti-corrosion effect.

High efficiency of cladding:

Speed 0-150rpm, efficiency 0.5m²/h, thickness 0.3-0.65mm.

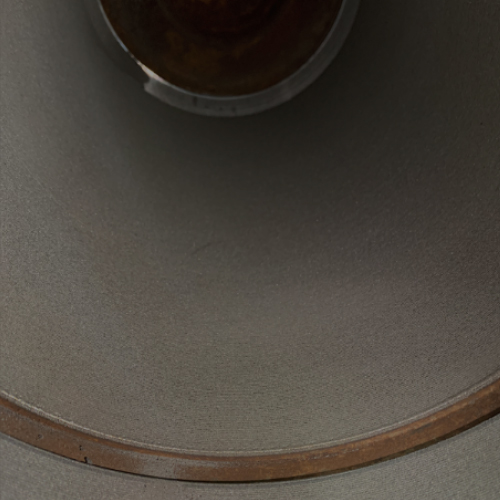

Process stability: The surface of the cladding layer is continuous and uniform, with no porosity defects.

Suitable for welding a wide range of materials with low welding costs.

Spindle speed

up to 10kW

Laser power

0.5-50rpm

25-150μm

Cladding thickness

Powder size

0.3-1mm

0.1-200g/min

Powder feeding amount

1.0m²/h

Cladding efficiency

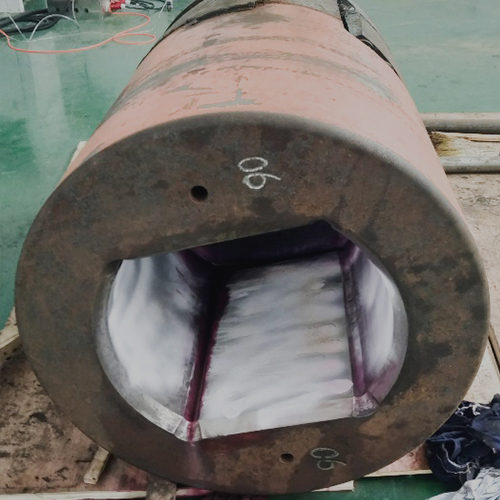

Can conveniently achieve high efficiency and high quality laser processing of the inner surfaces of different types of parts, and together withHUIRUI's existing ultra-high-speed laser cladding technology, it can complete high-speed cladding processing of oil cylinders, columns and other products.
