What is Inert Chamber iLAM?

8-axis robotic intelligent laser additive manufacturing system for net-shape additive repair of high performance part and 3D printing new products with controled oxygen and moisture environment.Capble processing Titanium,Aluminium,Nickel-based superalloys.

Inert Chamber iLAM

For more videos about fiber laser cladding machines,

just click the button.

High motion accuracy: Repeat positioning accuracy ≤±0.03mm.

Superior metal forming performance: inert gas working environment, water oxygen content can be reduced to <1ppm.

multiple powder feeding up to 6 lines, different types of powder can be fed, online mixed and printed simultaneously to make functional graded material.

Small parts are placed in and out through the transition chamber, large parts are placed in and out through the opening of the front lift-off glass window.

The operating system is user friendly, convenient for upgrading and expansion of new functions.

High degree of freedom of movement: cradle-type two-axis CNC positioner and robot to achieve 8-axis synchronous and high-precision positioning, complex aerospace parts can be repaired or shaped.

repair process visualisation: the software package provides a coaxial visual positioning function, to accurately align laser beam to the repair part, the CMOS based vision system also provides visualisation of the two-dimensional morphology of the melt pool.

The use of Hui Rui automatic powder feeder and high convergence nozzle, can accurately control the quality of powder feeding flow of ± 2%.

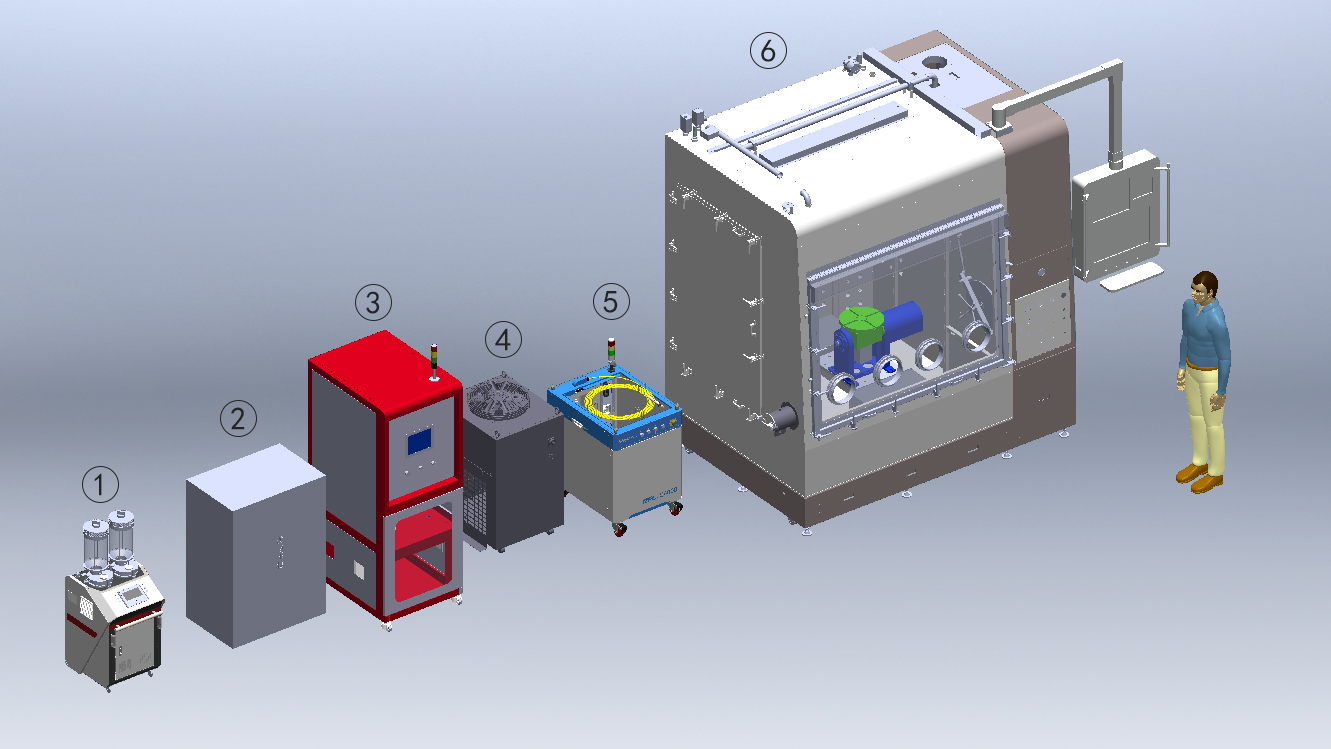

(①Powder feeder, ②Voltage regulator, ③Electronic control cabinet, ④Water cooler, ⑤Laser, ⑥Environmental box)

Fiber optic/Semiconductor

Laser

0.5-16m³

Volume of working

chamber

Equipment size

(For reference)

2.2X1.6X2.3m

（length*width*height）

0.5-10kW

Laser power

≤±2%

Powder feeding rate

Power instability

1-150g/min

Typical Deposition

Efficiency

10mm³/s

3+2 axis CNC

Six-axis industrial

robot

Motion Mechanism

IO/Bus

Remote Communications

≤±0.02mm

≤±0.03mm

Repeat positioning

accuracy

Control Systems

600X600X600mm

PLC/PC

1500mm

(arm span)

Working range

 (reference)

Path generation, slicing, equipment monitoring, off-line programming

Software

Shifter+turntable+movement

guideway

Additional axes

≤500kg

Options

Induction heating, infrared temperature measurement, automatic temperature control, coaxial imaging, coaxial illumination, side-axis vision positioning, melt pool monitoring, closed-loop feedback control, dynamic zoom

Table load

Environmental chamber

working mode

Inert gas replacement

Ambient water

oxygen content

≤10ppm(Minimum 1ppm)

1、Robot mobile guide rail is installed inside the box to increase the robot's range of motion and be able to process operation inside and outside the box;

2、The top of the box is equipped with a spoiler fan, which can accelerate the efficiency of the water oxygen purification cycle;

3、Built-in induction heating equipment, can preheat the repair workpiece, expanding the process window, to meet the needs of special materials for melting and cladding.

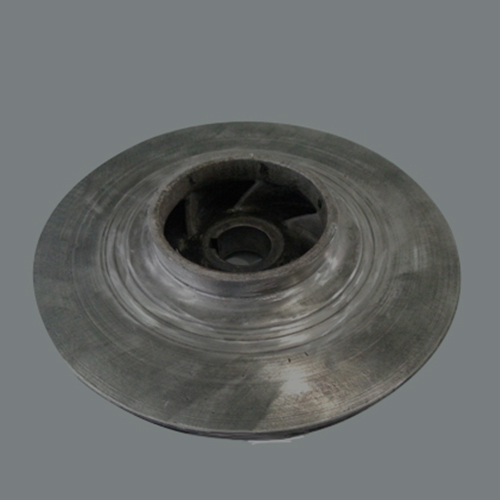

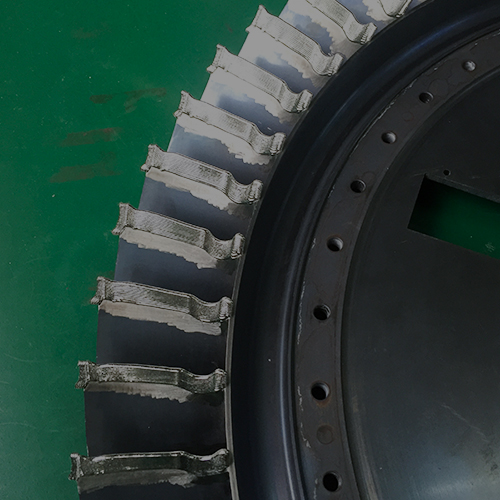

Examples include aero-engine and gas turbine components, vavles, oil drilling tools and moulds.  The product range has been applied to additive repair and 3D printing of metal materials such as nickel-based superalloys, titanium alloys, aluminium alloys, cobalt-based alloys and high-strength steels.
