Power instability

Deposition efficiency

≥50mm³/s

Laser wavelength

≤±3%

1-400g/min

Maximum worktable capacity

Laser power

Powder feeding capacity

915±10nm

CAAM

Scope of work

Swivel table

Configurable

Configurable

800×600×500mm

3-axis cartesian coordinate robot

Motion Repeat Accuracy

±0.2mm

Motion actuator

0.1-1kW/1-10kW

200kg

What is Standard 5-axis NC DED?

This system is professionally customized according to the actual needs of customers, taking into account both repair and 3D printing purposes; It can fully meet the needs of batch production, and lean production manufacturing needs.

Standard 5-axis NC DED

For more videos about fiber laser cladding machines,

just click the button.

High motion accuracy: Repeat positioning accuracy±0.02mm.

High degree of device integration: Motion control, laser, powder feeder, etc. are all centrally programmed.

Large workbench spacemall：Holds large parts to be repaired and can be replaced with large rotary tables or indexers.

CNC system: Adoption of PC-based high-performance CNC system with a more user-friendly interface than traditional machine panels.

Adopt linear module, high motion precision, stable dynamic performance, compact structure, good maintainability.

Linear motion axes and laser head above the machine with no change in load while avoiding dust interference.

Laser

Attached Workbench

Fiber optic/Semiconductor

Platform，800mm*600mm

≤±0.03mm

Profinet

Operating mode

Telecommunication

Software

Environmental chamber

Coaxial imaging, coaxial illumination

Others

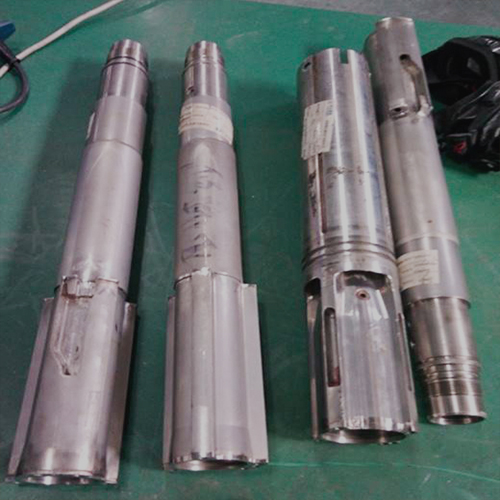

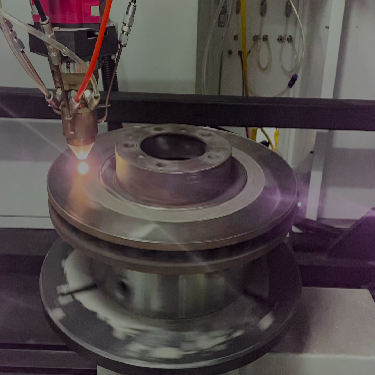

A variety of material preparation and additive manufacturing can be achieved on the material, which is suitable for the net formation and remanufacturing repair of high value-added products with high water-oxygen content requirements, such as aero-engine and gas turbine parts, oil drilling tools, moulds and other products, and can also be used for the manufacture of new products by metal direct forming (3D printing).
