Huirui independently develops rotary car feeders with a wide range of accessories to meet various needs.

商品信息

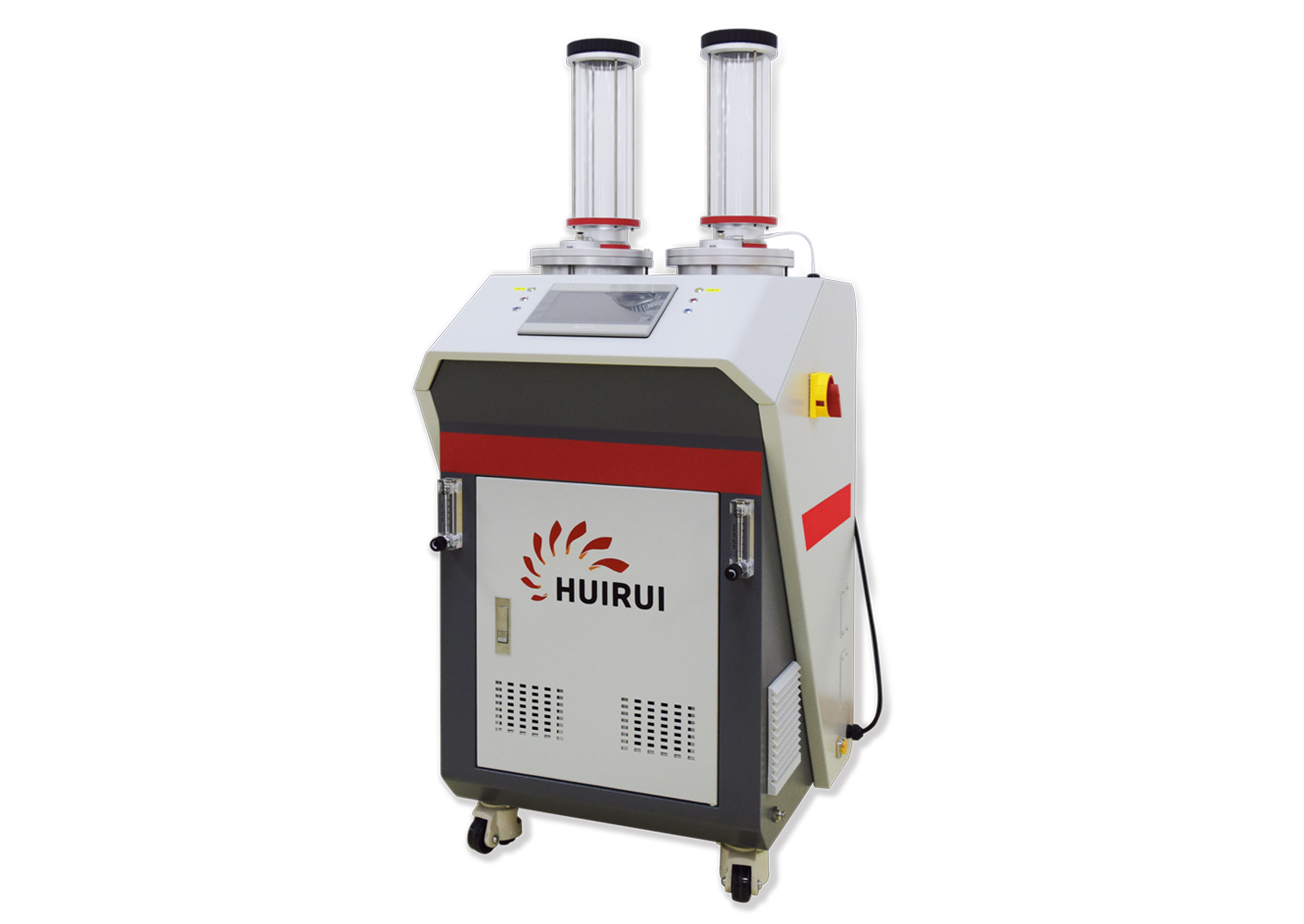

Huirui T series rotary powder feeder adopts advanced gas dynamics principle to realize powder feeding function. Via precise control of the gas flow, the powder disc rotation, and the preheating temperature, the metal powder can be delivered to the working area at a required condition. This product is widely used in high precision laser cladding and surface treatment process.

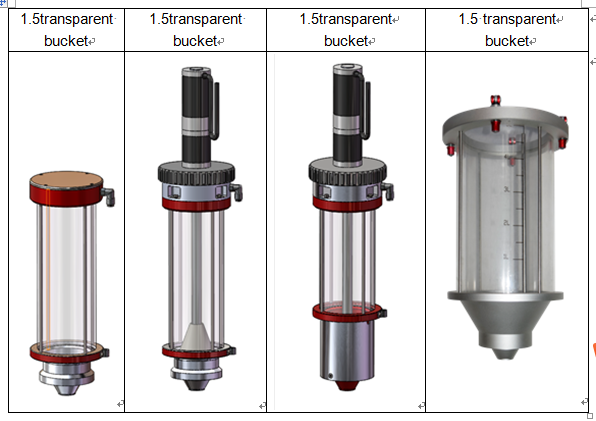

Optional module: transparent visible powder cartridge; 5L large-capacity powder cartridge; other customized model；

Human-computer interaction: Color touch screen, clear interface provides easy operation and better user experience;

Control mode: Various choices of control methods; industrial Ethernet can be used as the slave to accept robot control; Industrial Ethernet has simple wiring, low failure rate, rich information transmission, and can avoid powder rate fluctuates caused by traditional analog instability

Technical Data

	Standard	Optional
Model	LAMPF-TD
Number of cartridges	2
Powder feeding rate	0.4-300g/min
Powder feeding accuracy	≤±1%
Air pressure	2-6 bar
Air flow rate	1-25L/min
Heating temperature	60-100℃
Powder conveying distance	3-12m	can be customized for longer
Single cartridge volume	1.5L	optional 1L或5L
Powder particle size	20-250 μm
Powder disc rotation speed	0– 20 rpm
Powder cylinder	Metal alloy	Transparent Plexiglas
Controller	PLC
HMI	industrial touch screen
Remote control	robot/CNC/PC
Control variable	switch、turntable speed
Remote communication	IO、Profinet、Modbus/TCP
Mass flow control	Optional
Size	647670.41501.5
Quality	84kg
Total power consumption	1500W
Power supply voltage	220V
AC frequency	50HZ

Uninterrupted powder top up module

Airflow control	Mass flowmeter
Controller
HMI
Remote communication	AI/DI/Modbus/Profinet/Profibus
Description	The mass flow meter can adjust and monitor the stability of the powder feed gas flow in real time (displayed to the touch screen) to ensure the accuracy and stability of the powder feed. Controller and touch screen, optional remote communication default AI / DI / Profinet according to requirements, custom optional Modbus / Profibus interface. The above modes can be customized individually

The volume of the powder can is 1.6L. There is a quick socket connecting the module with the powder feeder. To top up the powder, pull out the top plug and fill the powder in. To replace powder, open the bottom sealing cover to clear away residual powder and clean the powder can.
